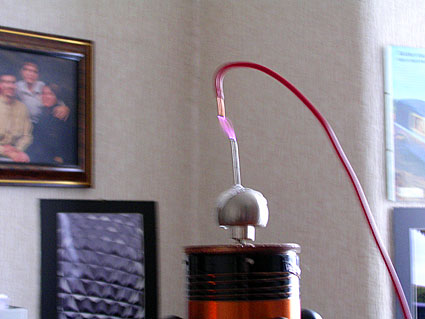

Thar she blows !!

Not much, just 15mm, but oh so important !!

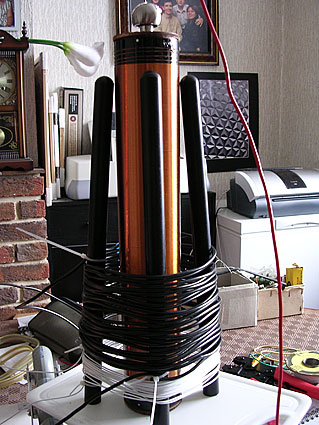

Probably the worst primary and feedback coils ever wound !

It just goes to show how wildly you can flaunt the basic design concepts and still get sparks.

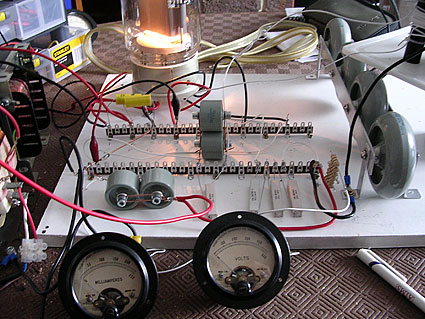

The birds nest !

A messy lash-up to get the ball rolling and find the weak spots in my design, stand well back !

The meters measure supply volts and current drawn.

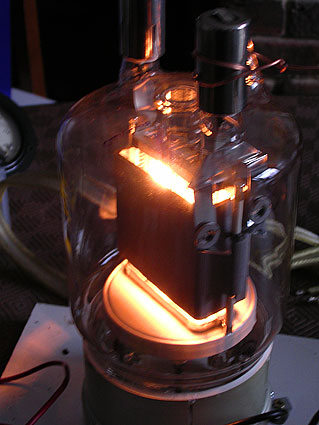

Oh joy !

Happiness is a hot cathode !

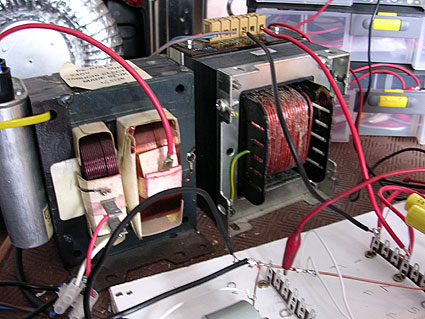

The two transformers, the right hand one is a 300w supply for the heaters and on the left is the microwave oven transformer for the high volt supply.
