The Stuart Turner Beam Engine

Back To Index

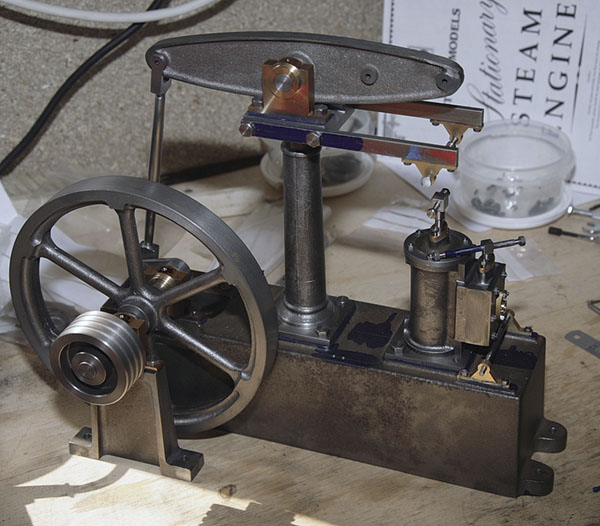

As it was on 17/06/2006, all that remains to be done is to make the eccentric strap and sheave,
parrallel motion linkage and then to clean up all the rough edges, test and paint it.
Then it needs a nice polished base to mount it on.

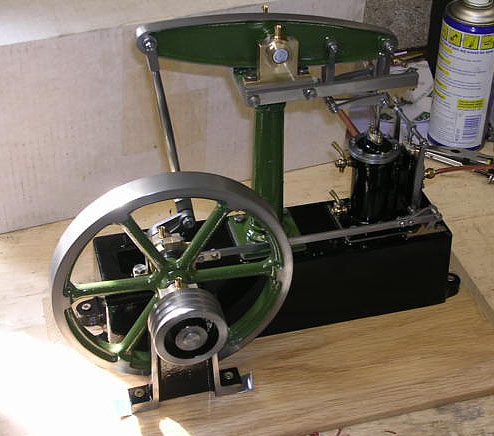

30/06/2006 - The finished engine. Mounted on a polished
wood base. It worked first time and ran even better after a little fine tuning
of the valve timing.

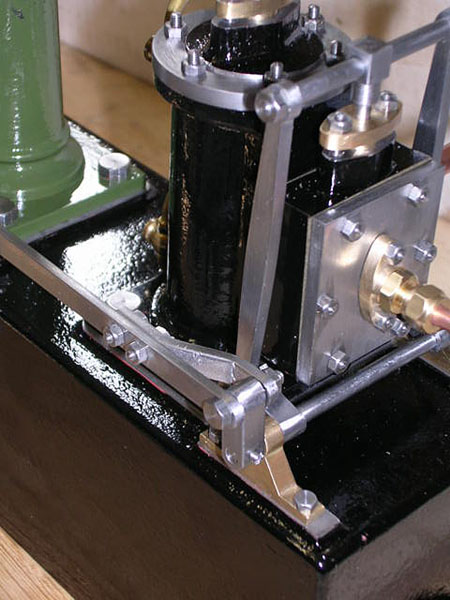

The valve linkage.

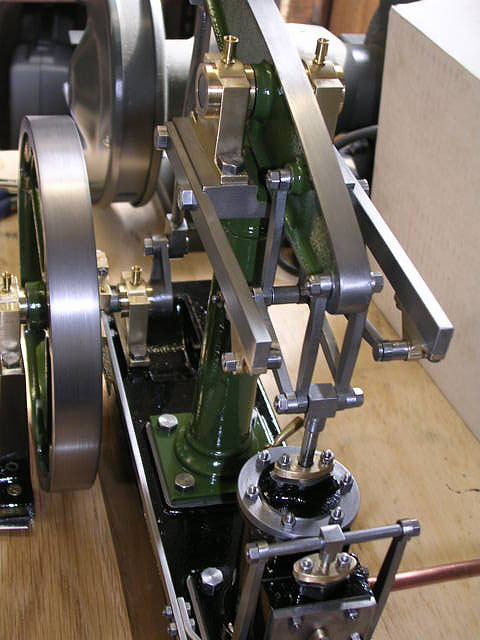

Watts parallel motion and the beam.

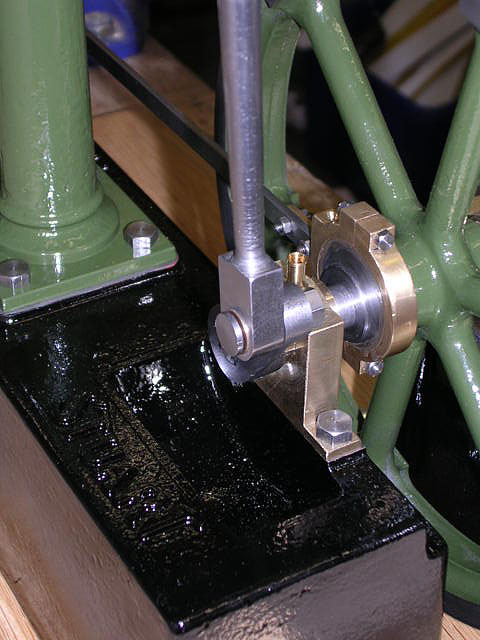

The crank and eccentric.

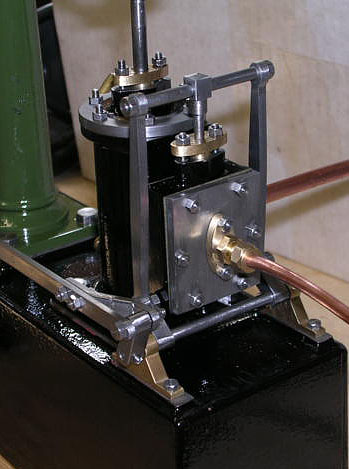

The cylinder and valve chest.

It is a fascinating engine to watch running, it was worth building just to study the
action of the Watts' parallel motion ! I will have to find a suitable place to display it now.

A lot of skills were learnt while making it including close tolerance turning, milling, accurate
marking out and how to extend my patience!
