The Little Samson Steam Tractor

Back To Index

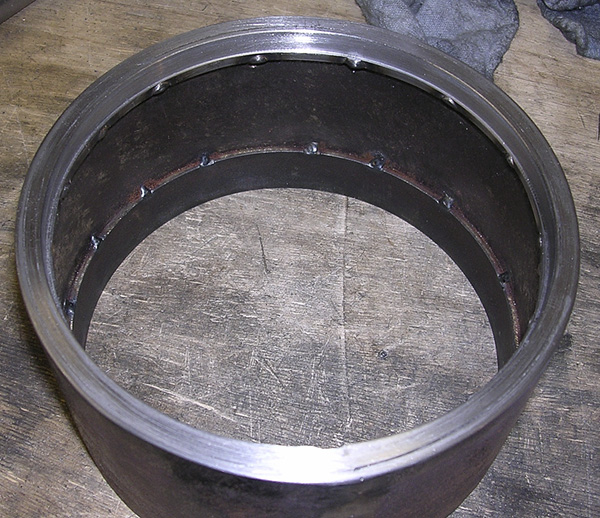

The smokebox tube showing the reducing rings in each end.

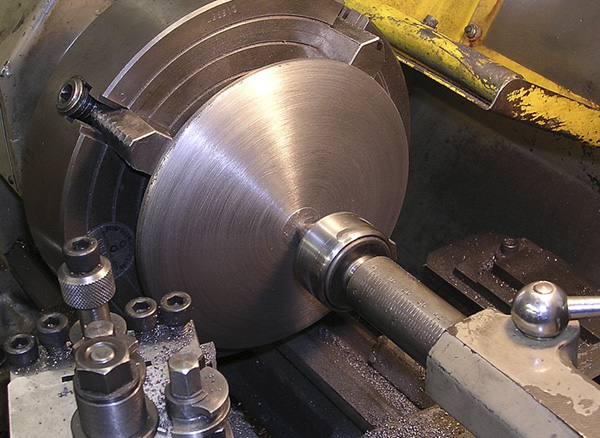

The smokebox door being cleaned up. Turning a curved surface
on a lathe is a fiddly process!

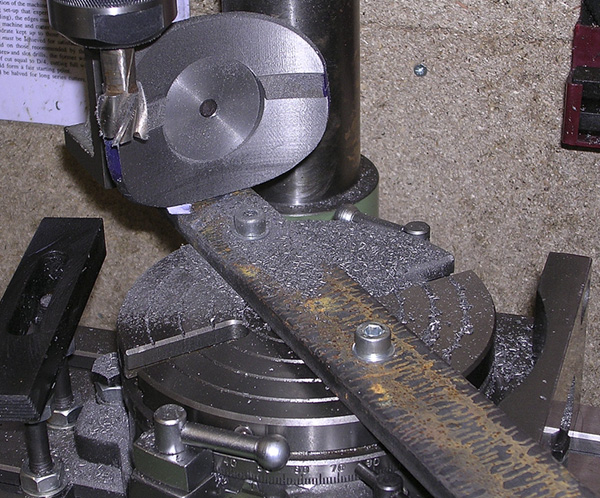

Milling the curve into the underside of the chimney base.

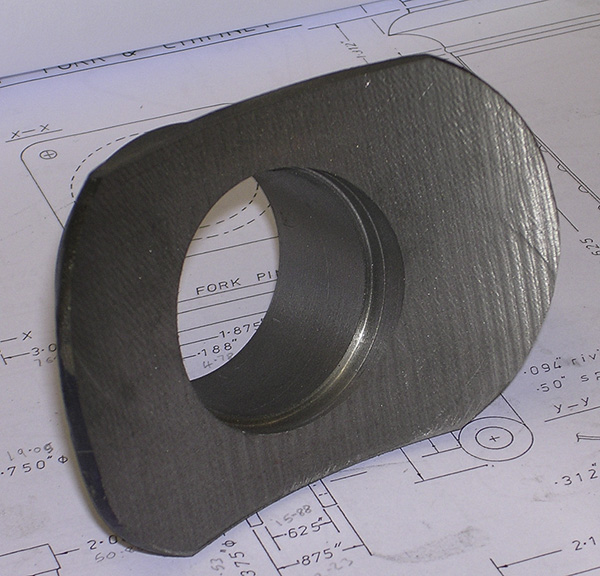

The finished base, ready for fitting to the smokebox.

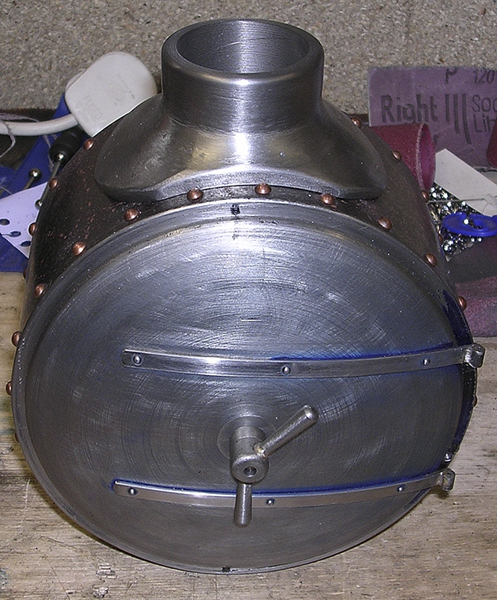

The assembled smokebox. The straight locking lever is going to be replaced in the
future as the original had a round handwheel to close the door.

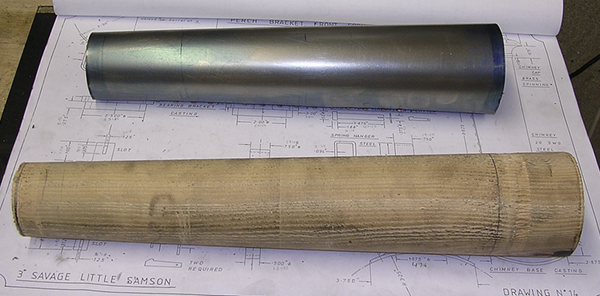

The rolled chimney and the wooden former used to make it.

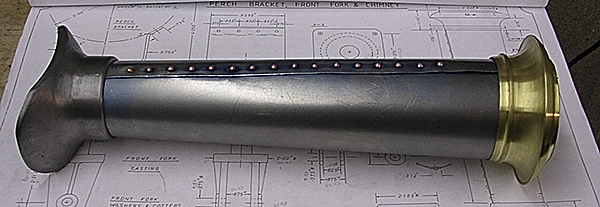

The finished chimney fitted to its base and top cap.
